PMS Prahm Microcomputer Systeme
Consulting
PMS can help your Company to lay new projects on the right tracks from the very beginning. With our 30 years experience in the development of automotive and automation products we can support you by achieving a successful product in the fastest, easiest and the most cost-efficient way.

For consulting services of more than 1 day the hourly rate is inside Germany all-inclusive.
180,00 EUR
incl. 19% tax excl. Shipping costs
Customer specific developments
PMS offers the following customer specific developments:
* Software tools for MS-Windows
* Embedded software of all kinds for all ARM Cortex microcontrollers
* Embedded hardware for real time systems

For development services of more than one week the hourly rate inside Germany is all-inclusive.


120,00 EUR
incl. 19% tax excl. Shipping costs
PMS StandOS Operating System
The PMS StandOS Operating system features the following
  • Download and Upload of programm and data
  • Powerful real time debug features
  • Powerful UDS and AutoSAR conform diagnose
  • Powerful and extendible DTC error memory with action matrix
  • An IEC-61131 compatible IL interpreter
  • All hardware interrupt events, which the ARM Cortex microcontrollers offer
  • All popular timer interrupt events from 1 ms to 1 minute
  • Time and date with triggerung of events
The PMS StandOS operating system is in connection with all PMS hardware free of cost.
2.800,00 EUR
incl. 19% tax excl. Shipping costs
RACKSYS IO Interface-25
The RACKSYS-IO-Interface-25 is plugged on the 25 pin SUBD connectors of the RACKSYS-EA boards. All signals are then easy accessible at the 25 connectors of the RACKSYS-IO-Interface-25 board.

15,00 EUR
incl. 19% tax excl. Shipping costs
RACKSYS IO Interface-37
The RACKSYS-IO-Interface-37 is plugged on the 37 pin SUBD connectors of the RACKSYS-EA boards. All signals are then easy accessible at the 37 connectors of the RACKSYS-IO-Interface-37 board.
20,00 EUR
incl. 19% tax excl. Shipping costs
RACKSYS-System
The RACKSYS-System is a complete 19" system solution for 14 RACKSYS IO Boards. It contains the RACKSYS-Chassis, the RACKSYS-Backplane-Bus with 14 64-pole DIN4612 female connectors for the RACKSYS-EA-boards and an AC/DC power supply for 12V/DC and 4,2A.
248,00 EUR
incl. 19% tax excl. Shipping costs
PMS StandOS Configurator - Editor Release
Configuration Options in the Deployment Window
By the Editor Release of the StandOS Configurator you can create operating states as for example Power-On, Run, GotoSleep, Sleep, Wakeup and Flash. By the Resource Deployment you then can configure events to the operating states, as for example interrupts, resets, timer-cycle-events and occured error events, which are set by the self diagnosis of the StandOS operating system. When such an event needs an activity, like an emergency power off, this can be deployed into an operating state in realtime.

Configuration Options in the Organisations Window
In the Organisation window for every deployment input- and output drivers and applications can be created. It it also is possible to force all input and output data. For the applications a multitasking  can be configured. When multitasking is configured and another Universal Programming Studio tool is debugging in cycle step, all multi tasking steps are executed to complete the cycle. When ARCON or RACKSYS controllers are applied, automatically the proper input and output drivers will be entered in the respective columns as configured by the System Configurator.
0,00 EUR
incl. 19% tax excl. Shipping costs
PMS Diagnose Configurator - Editor Release
The Editor Release of the Diagnose Configurator offers you all aspects of the development of UDS diagnostic software:
  • The tracking history
  • The creation all UDS diagnostic messages
  • The creation the complete AutoSAR compatible DTC error memory
  • The organisation of the non-volatile memory


0,00 EUR
incl. 19% tax excl. Shipping costs
PMS System Configurator - Editor Release
The Editor Release of the System Configurator offers the following:
  • The configuration of networks
  • The hard and software configuration of the frontend controllers
The configuration of networks
The Editor Release of the System Configurator offers the configuration networks of distributed controllers, where the net structure relates to the directory tree of the hierachical ordered projekts.

The hard and software configuration of the frontend controllers
At each double click on a controller hard and software configurators are called, by which all digital and analog inputs and outputs can be configured. In case of ARCON and RACKSYS controllers respektive input and output drivers for the StandOS operating system configured.
0,00 EUR
incl. 19% tax excl. Shipping costs
ARCON-E Prototype Hardware Ethernet
Microcontroller:         ARM Cortex M4 and ARM Cortex M0
Interfaces:                 1 Ethernet, 3 CAN, 1 LIN, 1 USB, 1 Alarm, 3 Sync
Further Hardware:    Input 7-35V, Keil-ARM Debug-Interface
Software:                   StandOS operating system
190,00 EUR
State Diagram Editor PMS-SD2 - Editor Release
0,00 EUR
incl. 19% tax excl. Shipping costs
Universal Programming Studio Packet
From November 1. 2023 on the free-of-cost download of the Editor Release of the Universal Programming Studios is possible. After the ordering, you will receive the complete development pack via email within 1-2 days.

The Universal Programming Studio pack contains the edit versions of all tools of the Universal Programming Studio:
  • The IDE of the Universal Programming Studio
  • All configurators
  • All graphical editors
  • All online tools
You can avoid the expenses of a delivery sevice by selecting the option "Self Pick". You will then receive the Universal Programming Studio toolset via email or via download.
0,00 EUR
incl. 19% tax excl. Shipping costs
ARCON-D Prototypenhardware Digital
Microcontroller:     ARM Cortex M4 and ARM Cortex M0
Interfaces:              1 CAN, 1 LIN, 1 USB, 1 Alarm, 3 Sync
IOs:                         12 digital inputs, 12 digital ouputs with galvanic iso and clamp diodes
Further Hardware: V-Input 7-35V, Keil-ARM Debug-Interface
Software:                StandOS operating system

190,00 EUR
State Diagram Editor PMS-SD2 - Online and Debug Release
Online and debug release of the State Diagram editor PMS-SD2
120,00 EUR
incl. 19% tax excl. Shipping costs

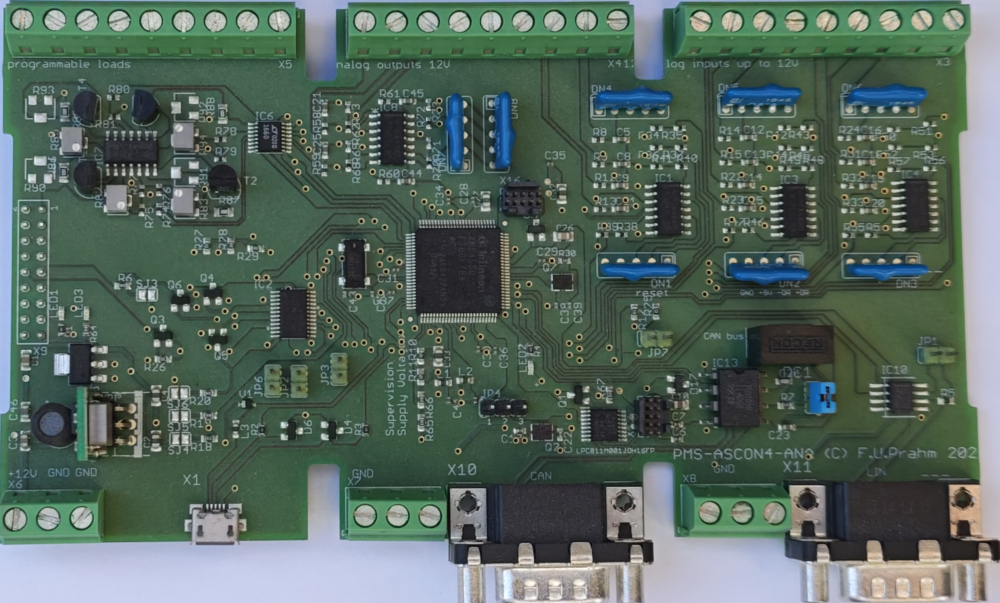

ARCON-A Prototype HW
Microcontroller:     ARM Cortex M4 and ARM Cortex M0
Interfaces:              1 CAN, 1 LIN, 1 USB, 1 Alarm, 3 Sync
                                12 analog 12V inputs, 10 bit
                                 4 analog outputs, 10 bit
                                 4 programable resitors
Further Hardware:  V-Input 7-35V, Keil-ARM Debug-Interface
Software:                 StandOS operating system
190,00 EUR
ARCON-D Prototype Hardware Digital
199,00 EUR
1 to 16 (from a total of 41)
